Product Detail

Means of Transport: Ocean
Packing: wooden
Production Capacity: 1000set/day
Delivery Date: 7days

Uses for expanding the cable on six division rolling disk.Features & BenefitsRolling di

Detailed Description
Uses for expanding the cable on six division rolling disk.
Features & Benefits
Rolling disk can rotate f

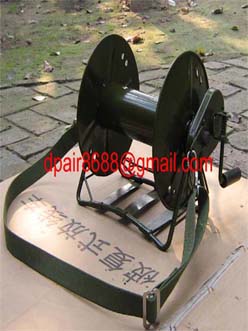

The hand to lift cable pay-off stand also called six division cable pay-off stand, Uses for expanding the cable by external force on six division rolling disk.
Cable drum jack&cable drum handling/cable handling equipment
Product No.: DL011       Product name: Trapezoidal and hydraulic cable drum jack
Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Product No.
Rated load
Applicable drum diameter
Applicable drum width
Axle bar diameter
Dead weight
DL011-3
3T
φ700mm-φ2100mm
≤1500mm
φ60mm
90kg
DL011-5
5T
φ700mm-φ2400mm
≤1700mm
φ76mm
130kg
DL011-10
10T
φ700mm-φ3200mm
≤1800mm
φ120mm
210kg
Product No.:CRS-10  Product name: Hydraulic cable drum jack
Application: applied in the pay-off of outdoor underground cable, high altitude line stringing, indoor switchboard wiring, etc. With fixed seat during operation, the cable drum will not swing back and forth. Support high by oil pressure, simple operation, can be lifted quickly and easily.
Product No.
Rated load
Applicable drum diameter
Applicable drum width
Axle bar diameter
Dead weight
CRS-10
10T
φ1800mm-φ2800mm
≤1800mm
φ120mm
210kg
CRS-15
15T
φ1800mm-φ3200mm
≤2200mm
φ120mm
260kg
CRS-20
20T
φ1800mm-φ3600mm
≤2400mm
φ140mm
380kg
Product No.: DL018   Product name: Mechanical cable drum jack
Product No.
Rated load
Applicable drum diameter
Applicable drum width
Axle bar diameter
Dead weight
DL018-1
1T
φ1160mm-φ1700m
≤1000mm
φ60mm
30kg
DL018-3
3T
φ1400mm-φ2100mm
≤1400mm
φ76mm
40kg
DL018-5
5T
φ1600mm-φ2400mm
≤1600mm
φ76mm
40kg
Product No.: DL026   Product name:cable drum reel rotator platform / elevator reel jack
Product No.
Rated load
Applicable drum diameter
Dead weight
DL026-4
4T
≤2200mm
55kg
DL026-6
6T
≤2500mm
65kg
DL026-8
8T
≤2700mm
80kg
